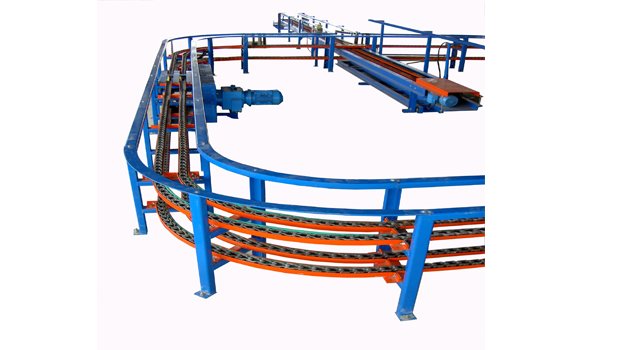

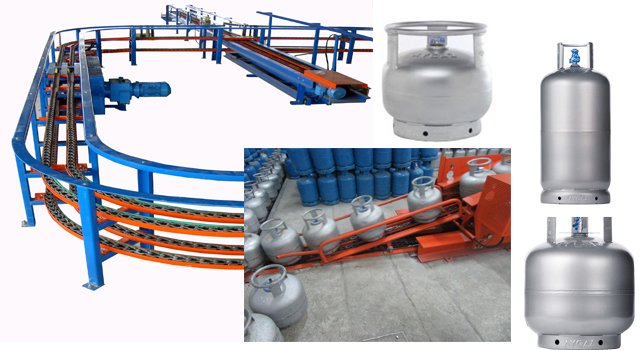

Conveyor systems:

Conveyor systems are designed for efficient and rational transportation of LPG cylinders from the discharge point to the loading point, passing through various processing points.

• Rational transportation of LPG cylinders
• Modular and flexible systems
• Layout according to requirements
• Systems for all cylinder types
• Quality and robust systems developed with 45 years of experience
• Manual or fully automatic control of cylinder flow
• Integration with machines and processes
• fully galvanized

Earnings:

• Minimum load on operators
• Capacity increase through optimization of manual processes
• Minimum manpower requirement
• lasting quality
• High safety thanks to controlled cylinder logistics
• Reduction of typical handling damage to cylinders
• Minimal wear, low power consumption and noise level when using soapy water lubricated chain conveyor

Facilities:

• Chain conveyor lubricated with dry or soapy water
• The modular principle allows for endless combinations
• Up and down chain conveyors
• Ex-proof motor and gear drive units for change in chain conveyor speed
• Chain conveyor systems with two or three chains and different widths
• Return sections for change in chain conveyor speed
• Installation at ground level or on supports at a specific level
• Manual, semi-automatic or fully automatic control of cylinder flow
• Pusher for discharge conveyor
• Central system for soapy water distribution
•

Working Safety:

• Ex marking according to the ATEX Directive and applicable EN standards: II 2G Ex h IIA T4 Gb CE logo EX logo
• All conveyor systems are designed to operate in hazardous areas classified as Zone 1 or Zone 2 according to EN/IEC 60079-10-1.
•  All conveyor systems are designed and certified according to a certified ISO:9001 quality management system; moreover, it is designed according to all relevant requirements set out in the applicable EU Directives
